HIKMICRO Habrok 4K HQ35L Thermal Binocular LRF

Description

Thermal Module

• Sensor Type: VOx Uncooled Focal Plane Array

• Resolution: 640 × 512

• Frame Rate: 50 Hz

• Pixel Pitch: 12 μm

• Spectral Range: 8 μm – 14 μm

• Thermal Sensitivity (NETD): < 20 mK (@25°C, F#=1.0)

• Lens: 35 mm, F1.0

• Focus Mode: Manual (Focus Ring)

• Detection Range: 1800 m

• Minimum Focusing Distance: 3.5 m

• Magnification: 3.0× to 22.0× (7.3× base)

• Field of View (H × V):

  • 12.5° × 10.1°

  • 22.0 m × 17.6 m @ 100 m



Optical Module

• Sensor Type: 1/1.8″ Progressive Scan CMOS

• Resolution: 3840 × 2160

• Lens: 60 mm, F2.2

• Minimum Working Distance: 3 m

• Focus Mode: Manual (Focus Ring)

• Magnification: 5.5× to 22.0× (4× base)

• Field of View (H × V):

  • 7.3° × 4.1°

  • 12.6 m × 7.2 m @ 100 m



Infrared Illumination

• Smart IR: Yes

• IR Illuminator: Replaceable

  • Default: 940 nm

  • Optional: 850 nm

• Night Viewing Range: 400 m



Image Display

• Display: 0.49 inch OLED, 1920 × 1080

• Thermal Palettes: Black Hot, White Hot, Red Hot, Fusion

• Optical Modes: Day, Night, Auto

• Flat Field Correction (FFC): Auto / Manual / External

• Exit Pupil: 8 mm

• Eye Relief: 15 mm

• Diopter Adjustment: -5 D to +3 D

• Adjustments:

  • Brightness: Yes

  • Contrast: Yes

  • Tone: Cold / Warm

• Zoom Pro: Yes



System Features

• Video Recording: Yes

• Snapshot Capture: Yes

• Audio Recording: Yes

• Standby Mode: Yes

• Onboard Storage: 64 GB Built-in EMMC

• Picture-in-Picture (PIP): Yes

• Wi-Fi Hotspot: Yes

• Hot Track: Yes

• Digital Magnetic Compass: Yes

• GPS Module: Yes

• Local Album Access: Yes



Power Supply

• Battery Type: Replaceable & Rechargeable 18650 Li-ion

• Operating Time: ≥8 hours (@25°C, Hotspot off)

• Charging & Power:

  • USB Type-C: 5 V DC, 2 A

  • Supports external power and direct charging



General

• Protection Level: IP67

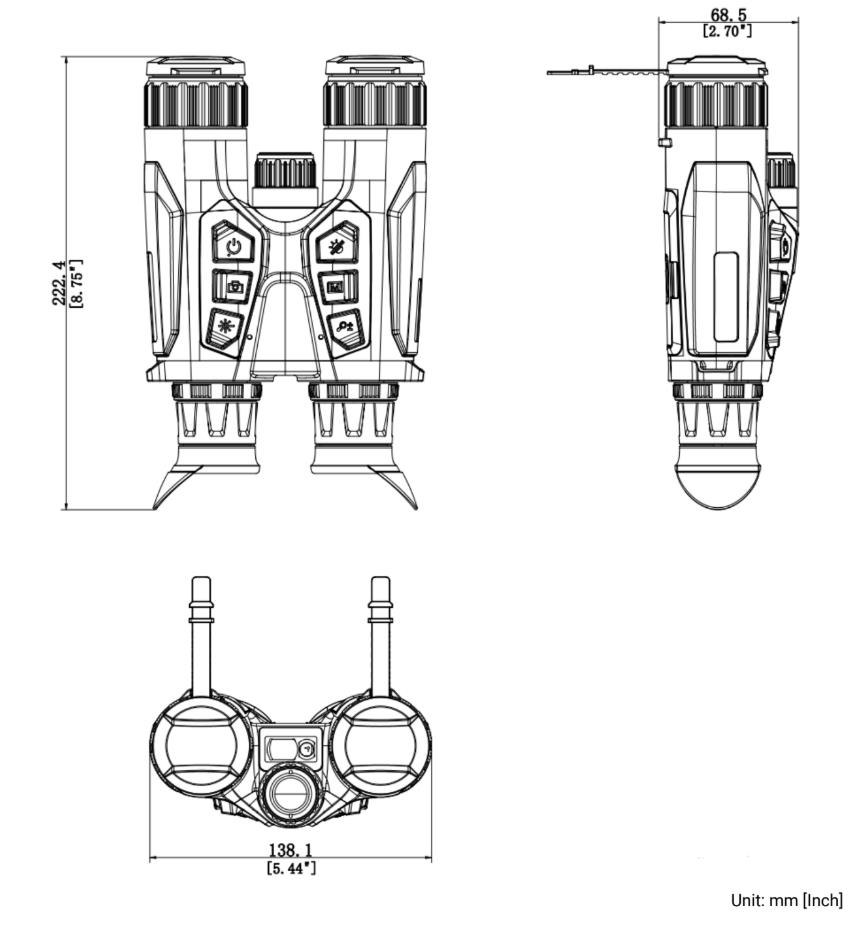

• Dimensions: 138.1 mm × 68.5 mm × 222.4 mm (5.44″ × 2.7″ × 8.75″)

• Weight: 798 g (without battery)

• Interpupillary Adjustment Range: 60 mm – 74 mm

• Mounting: 1/4″-20 UNC Adapter

• Operating Temperature: -30°C to +55°C



Laser Rangefinder

• Laser Class: Class 1

• Wavelength: 905 nm

• Measuring Range:

  • Minimum: 10 m

  • Maximum: 1000 m

• Accuracy: ±1 m

The HIKMICRO HABROK 4K HQ35L delivers cutting-edge multi-spectrum performance in a compact, high-precision format. Featuring a highly sensitive 640×512 thermal detector with <20mK NETD and an advanced 4K CMOS optical channel, the HQ35L ensures exceptional clarity and detection in all lighting and weather conditions—from open daylight to total darkness.

Equipped with a 60mm F2.2 lens and dual replaceable IR illuminators (850nm & 940nm), this unit adapts to a wide range of use cases—hunting, birding, search and rescue, and marine observation. The 1000m integrated laser rangefinder ensures pinpoint distance calculation, while the ergonomic chassis and intuitive controls offer seamless, on-the-fly operation even in field conditions.

The integrated image stabilization algorithm minimizes blur and vibration, delivering steady visuals across the 5.5x to 22x zoom range—ideal for scanning, tracking, and recording with precision. Its dual-spectrum system allows thermal and optical fusion, detecting hidden heat sources while preserving visual detail through the 0.49” OLED display at 1920×1080 resolution.

With an IP67 waterproof rating, 8+ hours of runtime from replaceable 18650 batteries, onboard 64GB storage, and built-in GPS, compass, and hotspot functionality, the HQ35L is engineered for endurance, clarity, and mission-critical performance. Whether spotting through dense foliage or capturing low-light wildlife footage, the HQ35L delivers reliability where traditional optics fall short. Experience the future of binocular technology with the HABROK 4K HQ35L.
