Aimpoint Hunter Red Dot

£540.00£595.00

Clear
SKU: AIMPOINTHUNTER Categories: ,

Description

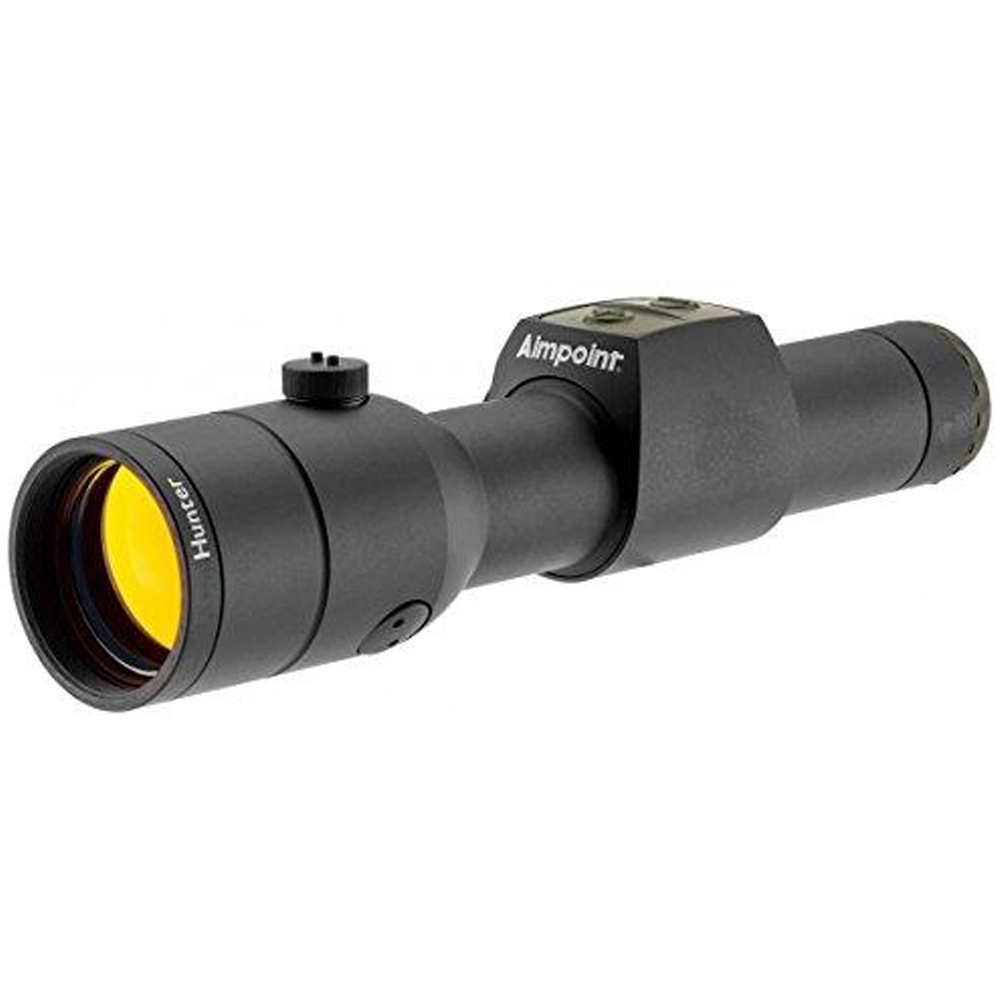

Belonging to the new Hunter series of sights, the Aimpoint® H30L sight is ideal for use on rifles with standard or magnum actions, and it suits any hunter who desires the classic lines of a full length sight. It can be mounted using any standard 30 mm rings.

This sight has a 30 mm tube diameter, which is standard and therefore offers a wide choice of mounting rings. Due to its length, we recommend this sight primarily for use on rifles with standard or magnum actions, plus to any hunter who desires the classic lines of a full length sight.



UNIQUE FEATURES

  • Ideal for use on rifles with standard or magnum actions.
  • Multi-coated 35mm objective lens.
  • 50 000 hours of constant operation from a single CR-2032 battery.
  • 2 MOA dot.
  • Fully waterproof.
  • 12 position digital push button inten-sity adjustment.
  • Adjustment turret caps are the only tools required to zero the sight.
  • Incredibly fast and accurate.
  • Legendary Aimpoint toughness.

TECHNICAL SPECIFICATIONS

GENERAL SPECIFICATIONS
Item No.: 12691
OPTICAL SPECIFICATIONS
Operating principle: Reflex collimator sight with LED
Optical magnification: 1x
Aiming dot size: 2 MOA
Dot intensity: Visible against a background luminance of 0.1 to 55 000 lx
Dot color: Peak Wavelength: 655 ± 15 nm
NVD compatible: No
Optical coating: Anti-reflex, all surfaces and multi-layer.
Clear aperture: 25 mm (.98 in)
Eye relief: Unlimited
POWER SOURCE
Battery type: 3V lithium battery, type CR2032.
Battery life – Day time use: 50 000h (over 5 years of continuous use)
Power intensity: 1 Off position and 12 daylight settings
PHYSICAL SPECIFICATIONS
Length sight only: 229 mm (9 in)
Length conf: 229 mm (9 in)
Width sight only: 43 mm (1.7 in) (at front end)
Height sight only: 43 mm (1.7 in) (at front end)
Weight sight only (incl battery): 238 g (8.4 oz)
Housing material: High strength Aluminum
Housing finish and color: Semi-matte black
Material mount and spacer std conf: High strength Aluminum
Surface treatment: Anodized, semi matte
Height of optical axis – sight and mount: 20 mm (.8 in) over top surface of Picatinny/Weaver Rail
Adjustment: 1 click = 20 mm at 100 meters = .8 in at 80 yds
ENVIRONMENTAL SPECIFICATIONS
Temperature range operation: -30°C to +60°C (-20°F to +140°F)
Temperature range storage: -51°C to +71°C (-60°F to +160°F)
Temperature shock: Operable after a temperature shock between -30°C and +60°C (-22°F and +140°F)
Humidity: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Submersible: To a depth of 1 m (3 ft.)
Shock: Withstands shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction)
Vibration: Withstands vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction
MECHANICAL INTERFACE
Mounting: 2 rings, not included
Max distance between rings mm/”: 137 mm (5.4 in)


Additional information

Weight N/A
Dimensions N/A
Variation

Long 30mm 2MOA H30L, Short 34mm 2MOA H34S
