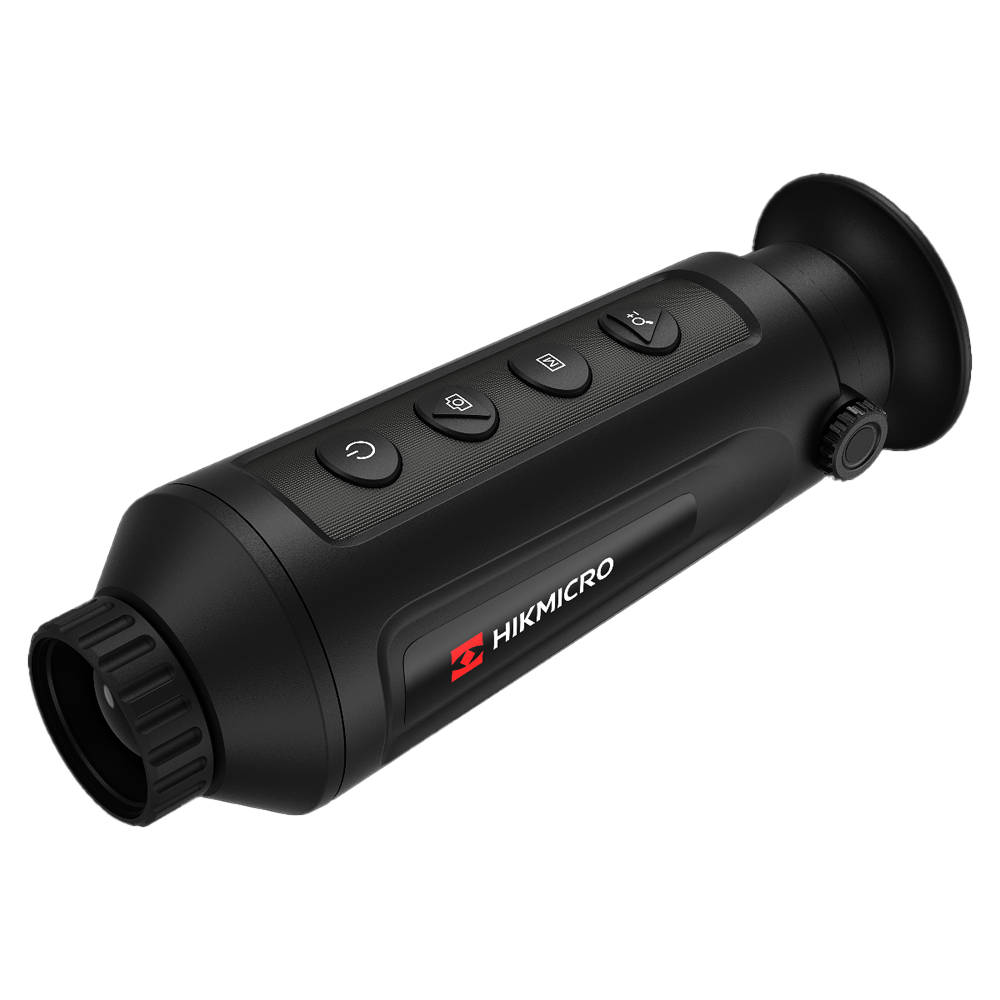

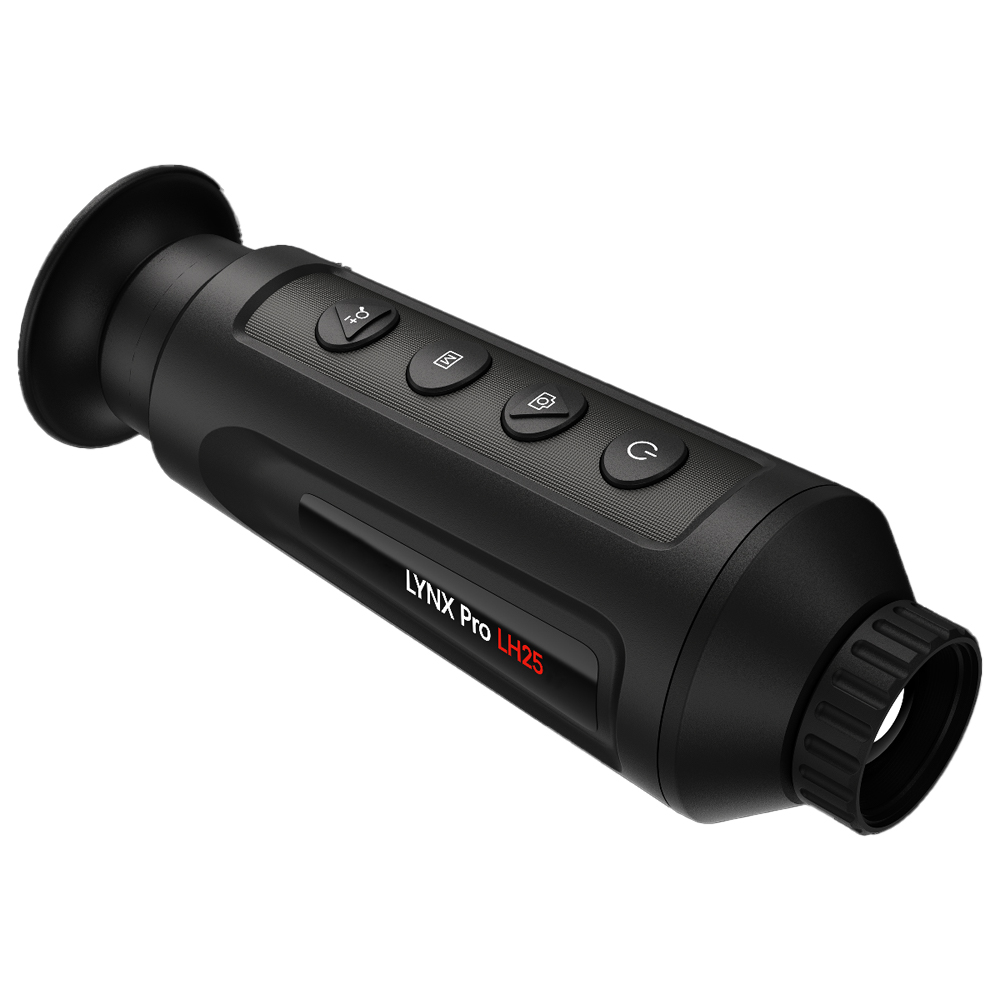

HIK MICRO LYNX PRO 25MM 35MK SMART THERMAL MONOCULAR

Description

HIK Micro Lynx PRO 25mm 35mK Smart Thermal Monocular Description:

HIK Micro Lynx PRO 25mm 35mK Smart Thermal Monocular to build on the success of the Lynx Pro 19mm with a higher magnification big brother making it perfect for detecting and identifying over longer distances.

This Lynx Pro 25mm utilises HIK Micro’s 384×288 12um sensor with a 25mm lens system to achieve a detailed image. The 2.4x optical magnification delivers longer detection distance which makes the Lynx Pro 25mm a powerful and versatile unit suited to a variety of situations. The sub 35 NETD performance of the sensor ensures detection of small temperature changes and excellent performance in harsh conditions.

The Lynx pro 25mm offers the same software as the other HIK Monoculars and includes 4 colour palettes, white-hot, black hot, red hot and fusion. The Lynx Pro can also record video or images with the onboard memory or connect to the T-Vision app to seamlessly share or record your shooting experience.

Main Features

• Sensor: 384×288px @ 12µm
• Objective Lens (Focal Length): 25 mm
• Detection Range (Human 1.8m x 0.5m): 1180 m

Sensor

• Type: VOx Uncooled Focal Plane Arrays
• Resolution, pixels: 384 × 288 px
• Pixel pitch, um: 12µm
• Frame rate, Hz: 50 Hz
• NETD: <35mK

Optics

• Objective lens: F1.0
• Magnification (optical): 2.45x
• Magnification (Digital): 1x, 2x, 4x, 8x
• Field of view: 10.5° × 7.9° (H × V)

Display

• Type: 10 mm LCOS
• Resolution, Pixels: 1280 x 960
• Colour Palettes: Black Hot, White Hot, Red Hot, Fusion

Video Recorder

• Built-in memory, GB: 8

Additional features

• Hot tracking: Yes
• WIKI Hot spot: Yes
• T-Vision App support: Yes

Environmental

• Degree of protection, IP code: IP67
• Dust protection: Protected against dust ingress
• Water protection: Protected against temporary submersion in water
• Operating temperature range: -20 °C to 55 °C

Weight & size

• Dimensions, mm: 171 mm × 61 mm × 57 mm
• Weight, Kg: 0.3 kg

Power Supply

• Operating time on battery (WIFI & Hot tracking disabled): 7.5 hours continuous running
• Charging interface: USB-C
• Battery capacity after 1000 cycles: 80%

Warranty

• Main Unit: 3 Years
• Battery: 2 Years
