Infiray Iray Thermal Rifle Scope TL35

Original price was: £2,660.00.Current price is: £2,150.00.

Tube Series To activate this unit’s reticle from
new, press and hold down the Palette + Brightness
buttons at the same time for
approximately 15 seconds.



  • Model: TL35
  • Detector Resolution: 384×288
  • Pixel Pitch, μm: 12
  • NETD, mK: ≤40
  • Frame Rate, Hz: 50
  • Objective Lens, mm: 35
  • Field of View: 7.5°×5.6°
  • Magnification,: × 3.1~12.4
  • Eye Relief, mm: 60
  • Diopter Adjustment: -5D~+5D
  • Display Resolution: 1280×960 LCOS
  • Battery: Built-in battery pack + replaceable 18500 battery
  • Max. Battery Life, h: 10
  • Built-in memory, gb: 16
  • Weight (w/o batt-18500), g: <900
  • Dimension, mm: 385×85×75
  • Interface: Type-C
  • Detection Range, m: 1816

Out of stock

SKU: IRAYTL35 Categories: , Tag:


Infiray Iray Thermal Rifle Scope TL35 description:

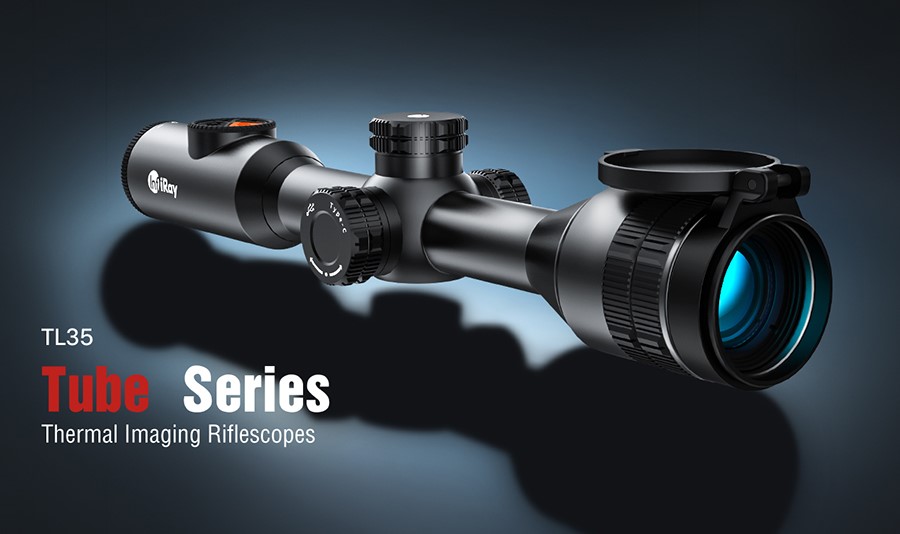

Infiray Iray Thermal Rifle Scope TL35 – Tube Series:

The Tube series is a cutting-edge thermal imaging riflescope, which has a similar appearance with the Day riflescope. The state-of-the-art design is especially for professional hunters who value traditions and seek technological superiority.

High Image Quality

The Tube Series is designed for faultless operation in extreme weather and temperature conditions. Whether or not the environment is freezing cold or blistering hot, the image retains its contrast and vivid colour without loss of frame rate.

User-friendly Interface

Rotary knob offers smooth zooming while four navigation keys offer optimal feeling of control.

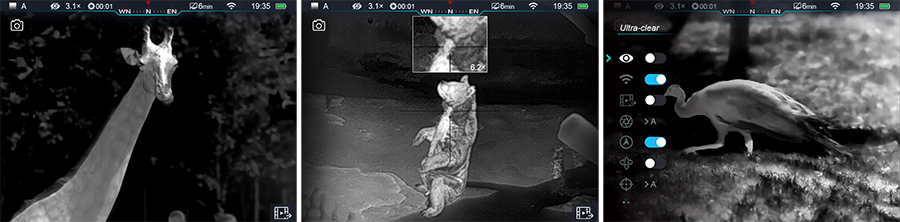

Picture-in-Picture Function

The Picture-in-Picture function improves accuracy by  providing a 2x-magnified image of the reticle area at the top  of the display. It helps to zoom in on a target while maintaining  visibility of the entire field of view.

Ultraclear Mode

Built-in ultraclear mode is designed for  bad weather conditions, such as heavy  fog and rain. It will make the Tube series  more sensitive and also capable of providing  more details.

Reliable Full Aluminum  Housing

The Tube series housing is made of aluminum  and is designed to improve reliability. Designed for rugged reliability, Tube riflescopes boast full, reinforced yet lightweight metal construction. Precision-fabrication of housing elements ensures flawless field performance.

Mounts on Standard 30 mm  Scope Rings

Applicable for 30mm diameter pipe, the newly designed tubular appearance allows the Tube series to be installed on standard 30mm scope rings, with simple operation, stability and reliability.

Sufficient Operation Time and  Flexible Battery Choice

The working time of bulit-in battery is up to 8 hours, and the replaceable 18500 battery will provide an  additional 2 hours of operation.

Extreme Detection Range

It combines the advanced thermal imaging  sensor and the high-quality germanium  optical lens to provide an unprecedented  detection range up to 1800 meters, even in  complete darkness.

12μm Pixel Pitch

The high-performance detector with the pixel pitch of 12μm is embedded

Built-in Video Recorder and  WiFi Connection

16 GB internal storage provides 24 hours of video recording capability, or  approximately 20,000 images of photo storage. WiFi mode allows for up  to 4 connections simultaneously.

Apple & Android App Link- CLICK HERE

User Manual- CLICK HERE

For other Infiray products- CLICK HERE


Additional information

Weight 2184 g
