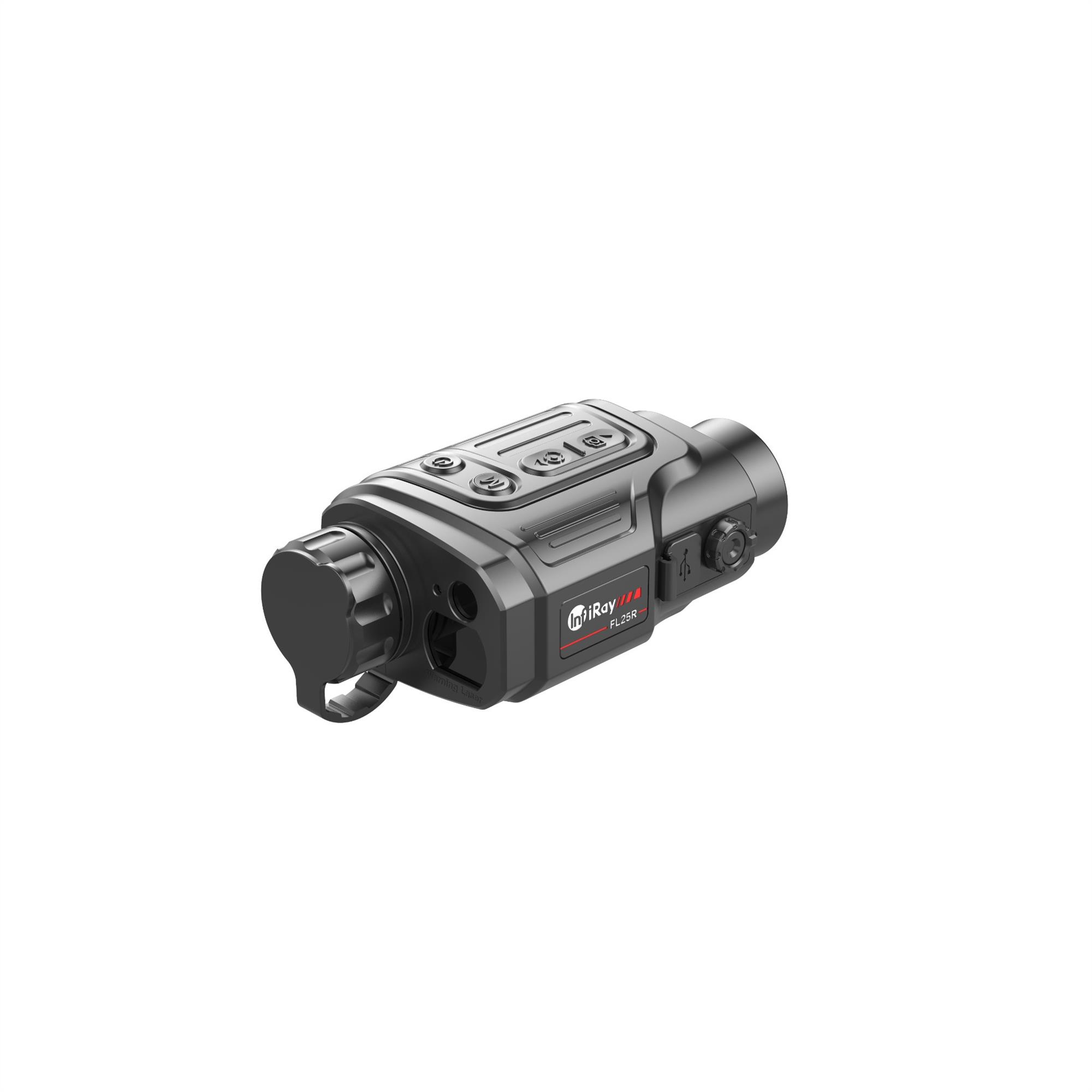

Iray Infiray Thermal Imaging Scope Finder Series FH35R
Out of stock
Resolution, pixels 640×512
Pixel size, um 12
Sensor NETD, MK 35
Frame refresh rate, Hz 50
Objective Lens F35/ 1.0
Field of view, degrees 12.6X10.1
Optical magnification, x 3.4 ~ 13.6
Digital zoom, x x1, x2, x3, x4
Display Type OLED, 1024 x 768
Battery type Li-ion battery pack, replaceable
Max. battery life (t=25?), h 6 5.5
Laser rangefinder range, m 800 ±1
Amount of built-in memory, GB 32
Dimension, mm 160x90x50
Weight(without replaceable battery), g 400
Detection Range, m 1818
(Target size:1.7m×0.5m, P(n)=99%)
InfiRay FINDER Series Themal Monocular FH35R – 640×512, 12μm VOx ,<40mk NETD, 50Hz, 35mm lens, 768×1024 OLED display, 1x/2x3x4x magnification, Compass & Msensor,WI-FI, built-in Storage 32GB, 6hr Battery life, 1298m range Thermal Imaging Scope Finder Series The Finder series products are light and easy to carry, especially suitable for one-handed operation that can be put in a pocket anytime and anywhere. The compact design and built-in laser rangerfinder makes the Finder the best choice for outdoor investigation.
Meet Finder Series The Finder series products are light and easy to carry, especially suitable for one-handed operation that can be put in a pocket anytime and anywhere. The compact design makes the Finder the best choice for outdoor investigation. High Image Quality The advanced image processing ability of the InfiRay detector, which has high performance electronics and optimized infrared optics, creates excellent image clarity and provides better detection and classification, both in day and night. 12 µm Thermal Imaging Sensor High performance 12 μm pixel pitch detectors are embedded. Powerful objective lens in combination with a 12 µm professional grade thermal imaging sensor provides exceptional detection capabilities. A standard 1,7 m (5.58 ft) tall object can be detected at a 1300 m (1420 yds) distance in complete darkness.
Long Detection Range 1298 m The powerful objective lens combined with a 12 μm professional grade thermal imaging sensor provides exceptional detection capabilities. High Image Frequency 50 Hz The 50 Hz refresh rate guarantees that you will capture every moment that you are interested in. HD Micro Display 1280×960 high-resolution internal display offers sharp image and vivid colors. Integrated Laser Rangefinder (LRF) 600m The Finder series has a built-in laser ranging module, which helps to quickly and accurately capture and display the target distance. The ranging accuracy is ± 1 m and the maximum ranging distance is 600 m. Accurate distance readings help to quickly assess the size of territory, distance and relief. Integrated, precision laser rangefinder provides accurate rangefinding, it provides both single ranging and continuous ranging modes. Continuous ranging can be quickly activated to adapt to the constantly changing distance of the observed object.
Pocket Machine The compact size and light weight makes it easy to carry and operate with one hand. It can be put into the pocket anytime and anywhere. The Finder weighs only 320 g,which is lighter than conventional rangefinders, but much more powerful. Compact size of thermal imager makes it an optimal portable unit for scouting and spotting.
Infrared Sensor Switch By sensing the reflection, the infrared sensor switch control the display on and off automatically which saves power and extends the device’s operation time. It also has the advantage of high sensitivity, strong anti-interference ability and stable working performance. Built-in Video Recorder and WiFi Connection With built-in storage space , Finder series support to save the interesting moments in the form of photos or video for sharing with colleagues, friends and family. It can store many hours of recorded video and tens of photos.
App Supported Built in Wi-Fi module provides connectivity of Finder with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware.
