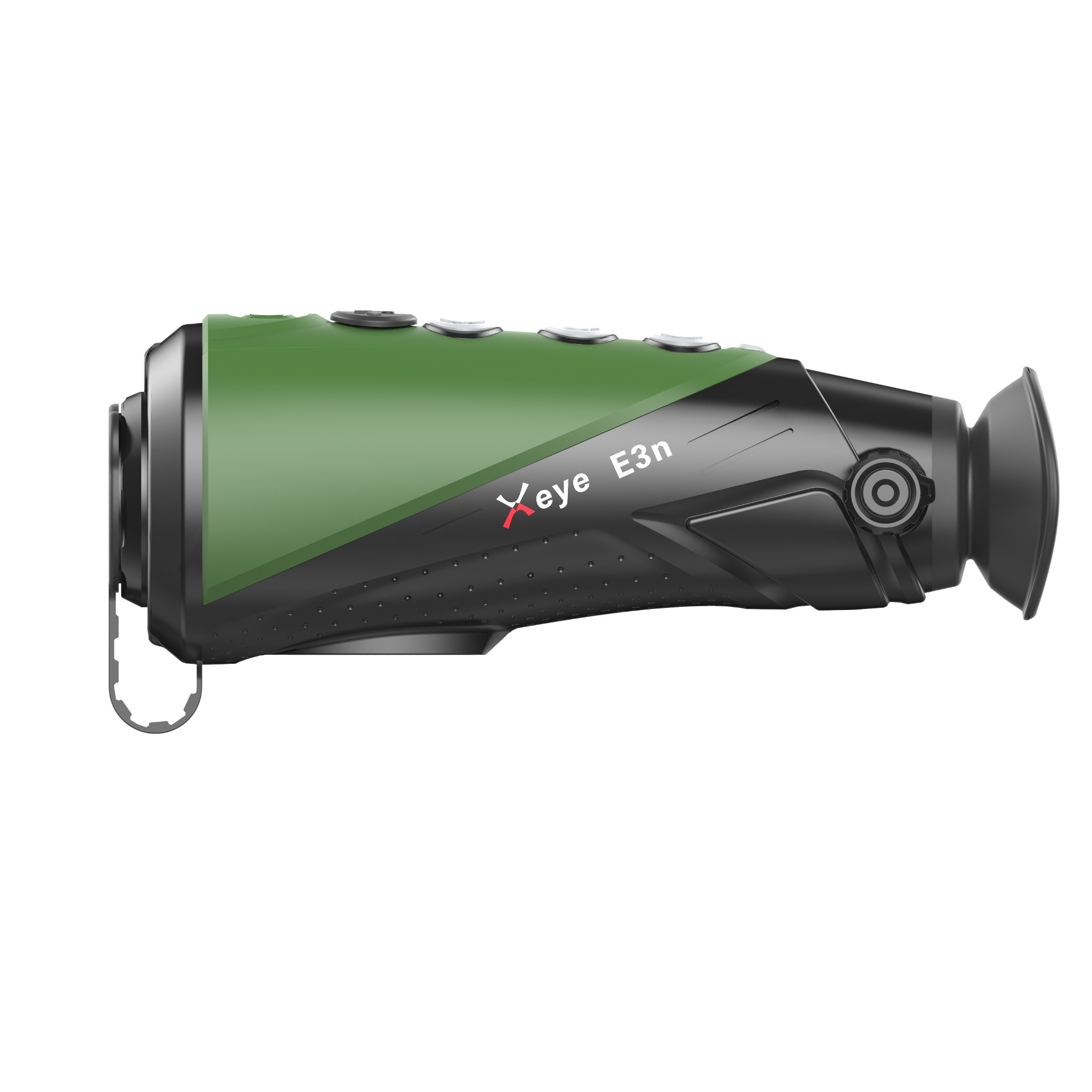

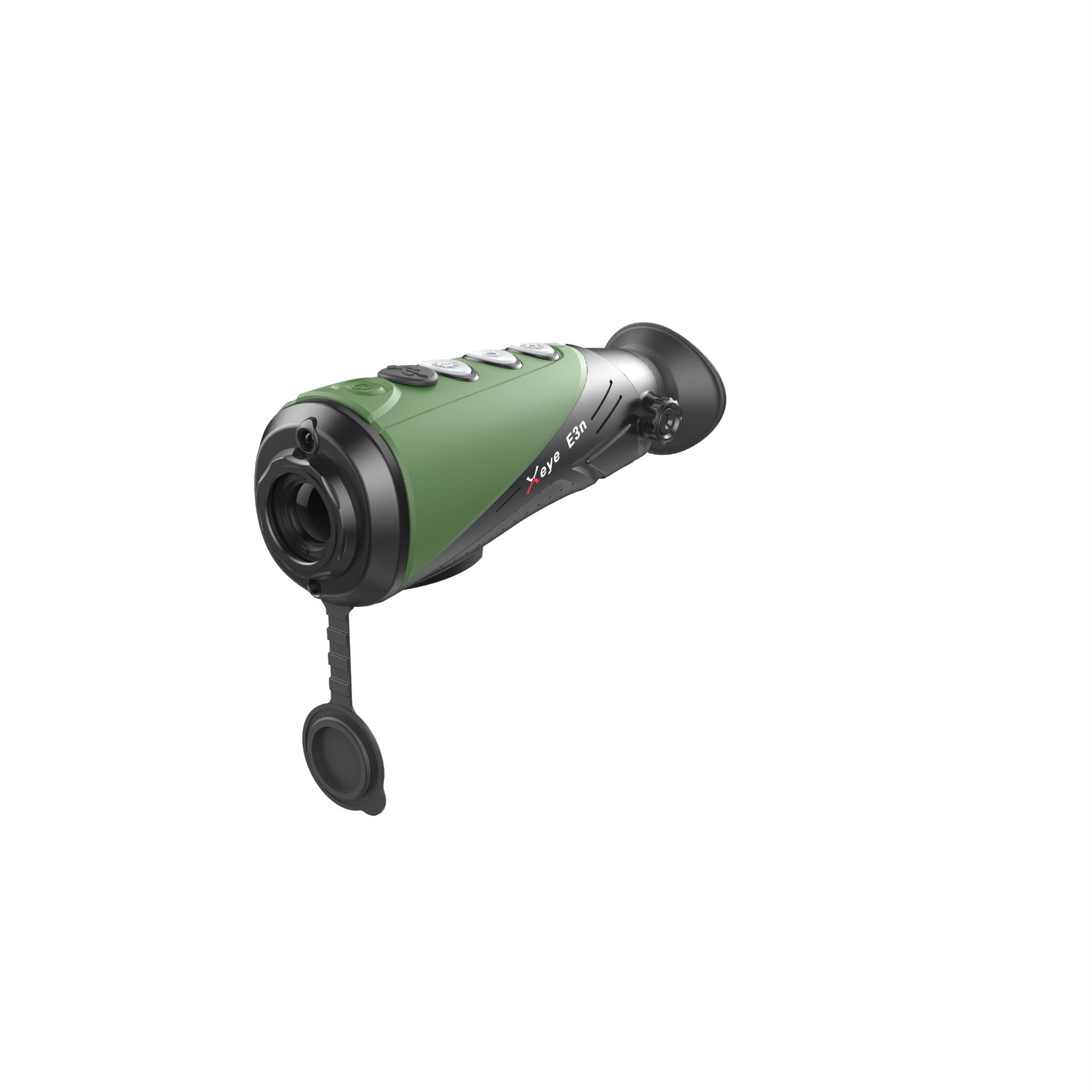

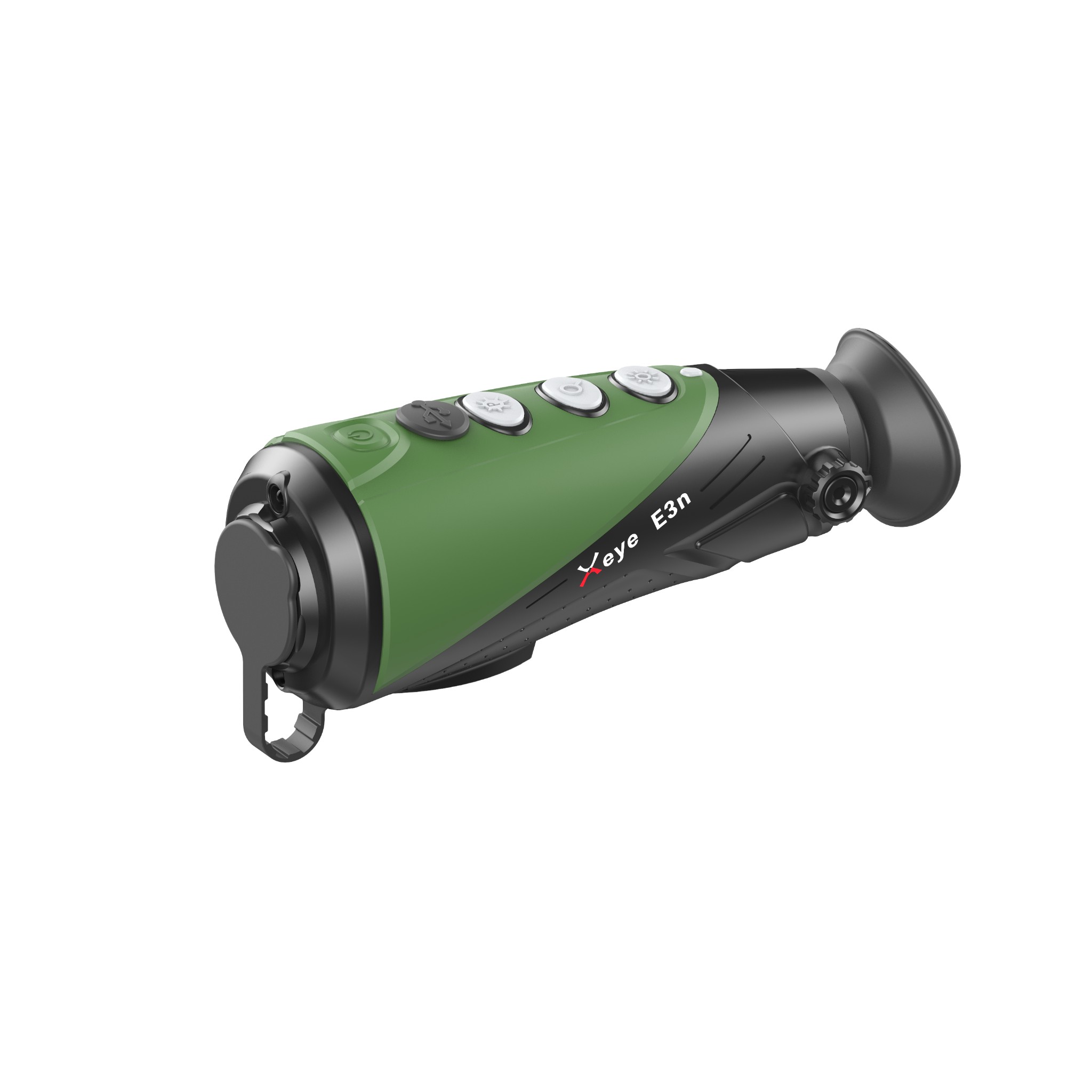

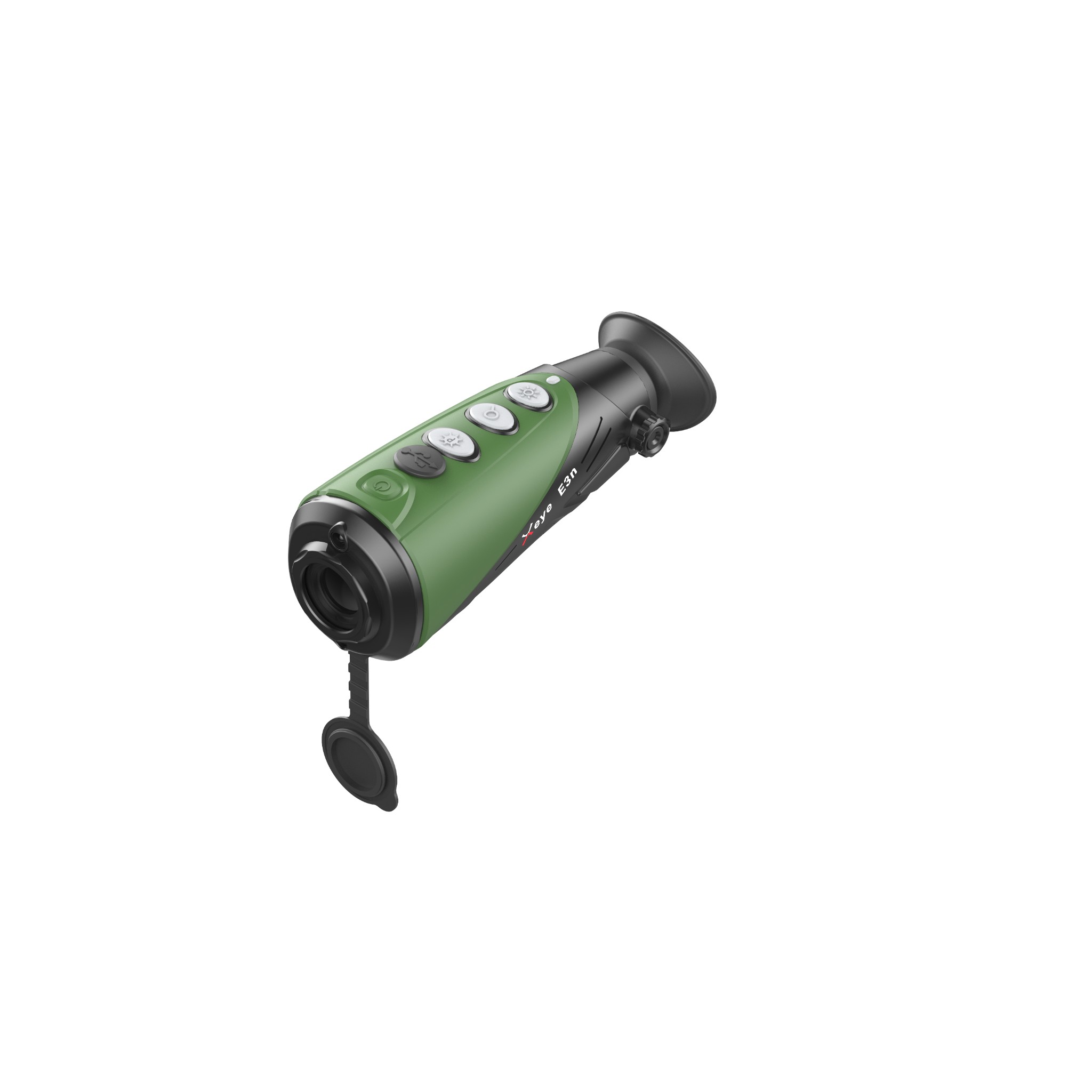

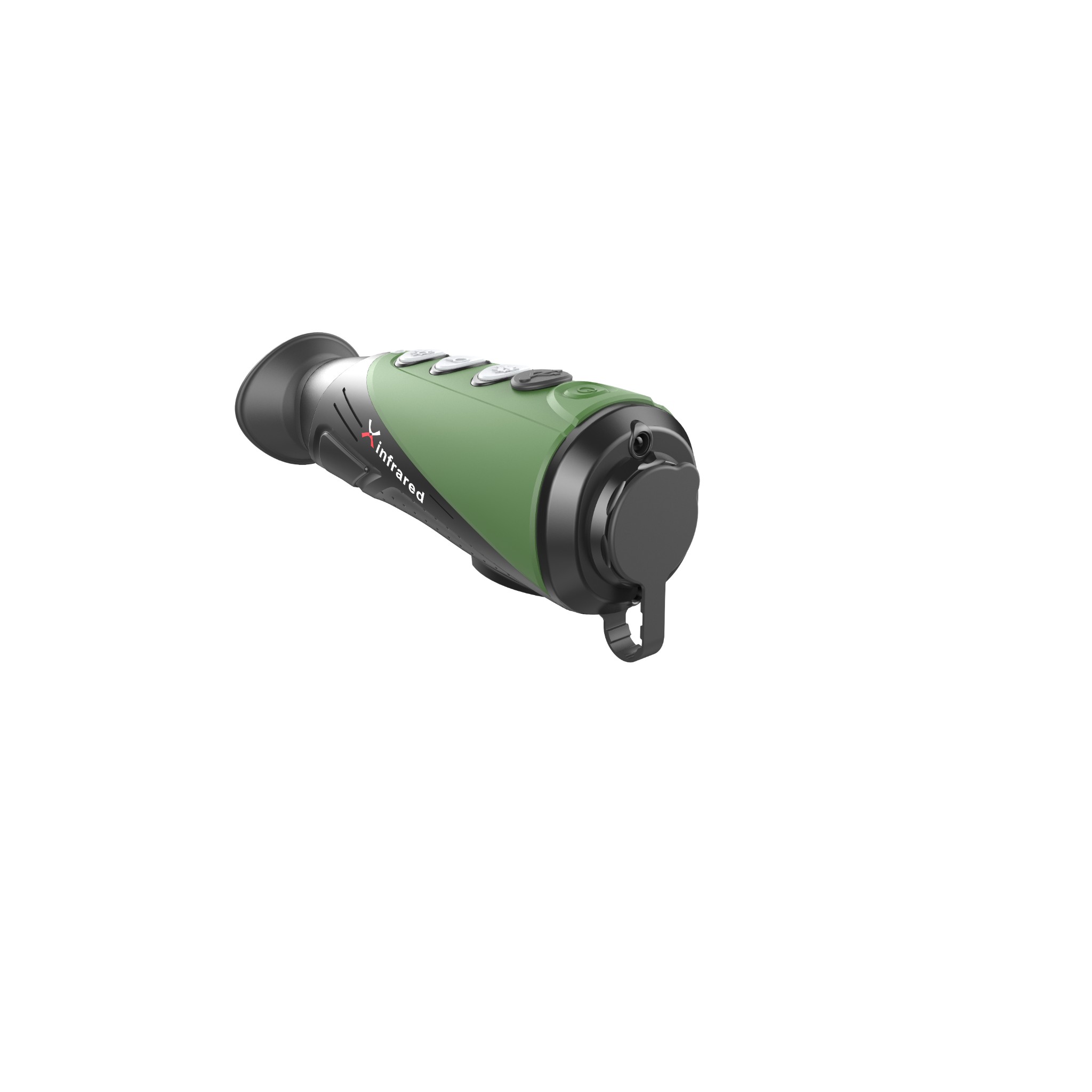

Iray E3N Infiray Thermal Monocular E3N Eye Series

Description

Iray E3N Infiray Thermal Monocular E3N Eye Series

Model: E3N

Resolution: pixels 384×288

Pixel Size: μm 17

NETD: mk ≤40

Frame Rate: Hz 50

Objective Lens: mm 19

Field of View: 19.5°×14.7°

Display: 720×540

LCOS Optical Magnification: x 0.85-1.7

Digital Zoom: x 2x – 4x

Max. Battery Life: h 15

Wi-Fi: No

Photo & Video: No

Laser: No

LED Indicator: Yes

Dimension: mm 160×62×62

Weight: g <320

Detection Range: m 739

Thermal Imaging Scope Iray E3N Eye Series V1.0 The compact & elegant design and easy operational functions make the Eye series thermal imaging monocular the ideal  target observation tool in darkness.

Meet Eye Series V1.0 The compact & elegant design and easy operational functions make the Eye series thermal imaging monocular the ideal vision enhancement tool in darkness.

High Image Quality The Eye series are is embedded with IRay independently developed high performance VOx detector which allows you to get high detailed thermal images, so as to make it simpler to search targets in darkness. Comprised of advanced software algorithms EYE is designed to increase imaging clarity and overall image detail which results in a sharper, more detailed field of view and enhanced object identifcation capabilities.

High Frame Rate The 50Hz frame rate guarantees you to capture every moment that you want to catch. Smooth, fluent and crystal clear views offers excellent observation for all your outdoor adventures.

Pocket-Sized Thermal Vision Monocular The InfiRay EYE series is a pocket-sized thermal vision monocular for exploring the outdoors—at night and in lowlight conditions. EYE reveals your surroundings and helps you see people, objects and animals over hundreds meters away. Simple to use, with still image and video recording, EYE is the perfect companion, whether in the back country or your own backyard.

17um Thermal Imaging Sensor High performance 17μm pixel pitch detectors are embedded in the compact body.

Friendly Electrical Interface The EYE is designed with ease-of-operation in mind. The monocular can be connected to specified APP via USB cable which allows user to watch the real-time video, take picture and record video on mobile devices based on Android and iOS such as smartphone or tablet. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.

Standby Function When it is necessary to temporarily stop observation the user can apply standby function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation (when display is turned off, all other systems are working; for normal operation it is enough just to power on the display again).

Compact Size and Lightweight Compact size and lightweight becomes important in outdoor using, which ensure the highest level of comfort and usability.

5 Color Palettes The Eye series provides more than 5 color palettes for true colorized temperature mapping, including “white hot”,“black hot”,“red hot”,“color” and “hot target highlight”. Switching between different color palettes is fast and easy.

Long Detection Range Powerful objective lens in combination with professional grade thermal imaging sensor with NETD 50 mK provides exceptional detection capabilities. An average human-size target can be detected at a 1300m distance in complete darkness.

User Manual
