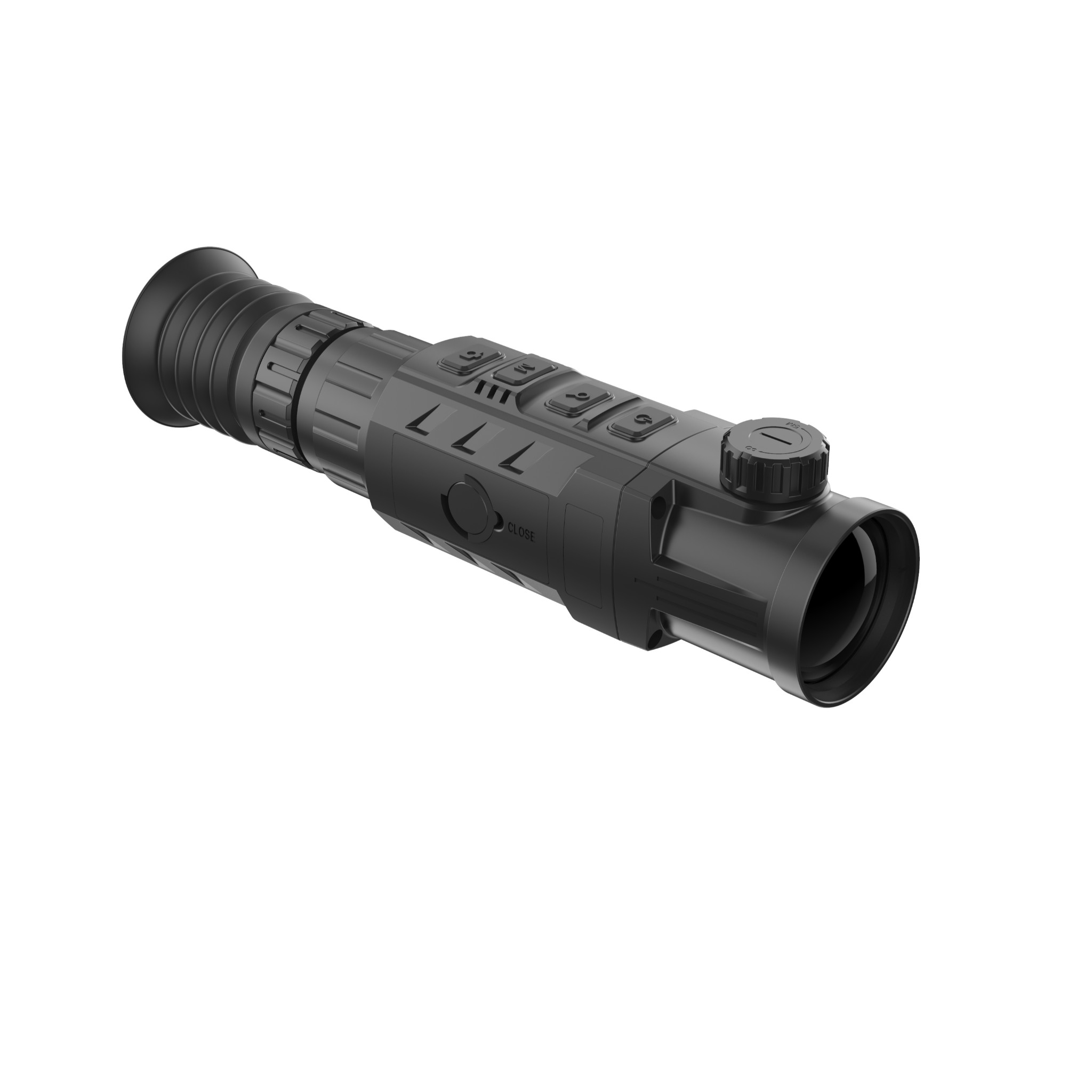

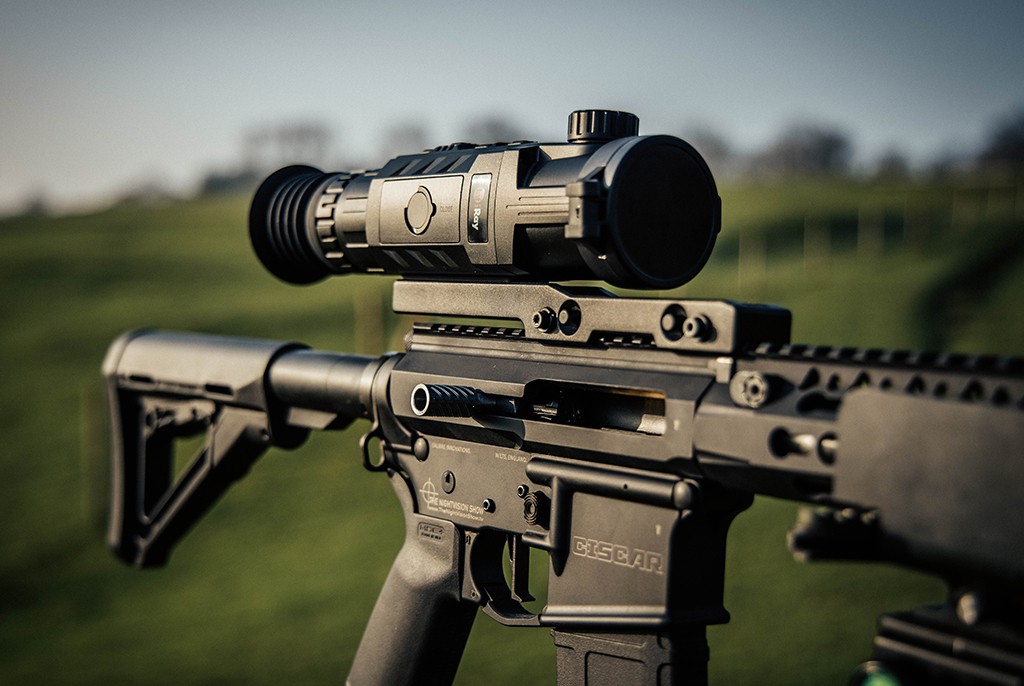

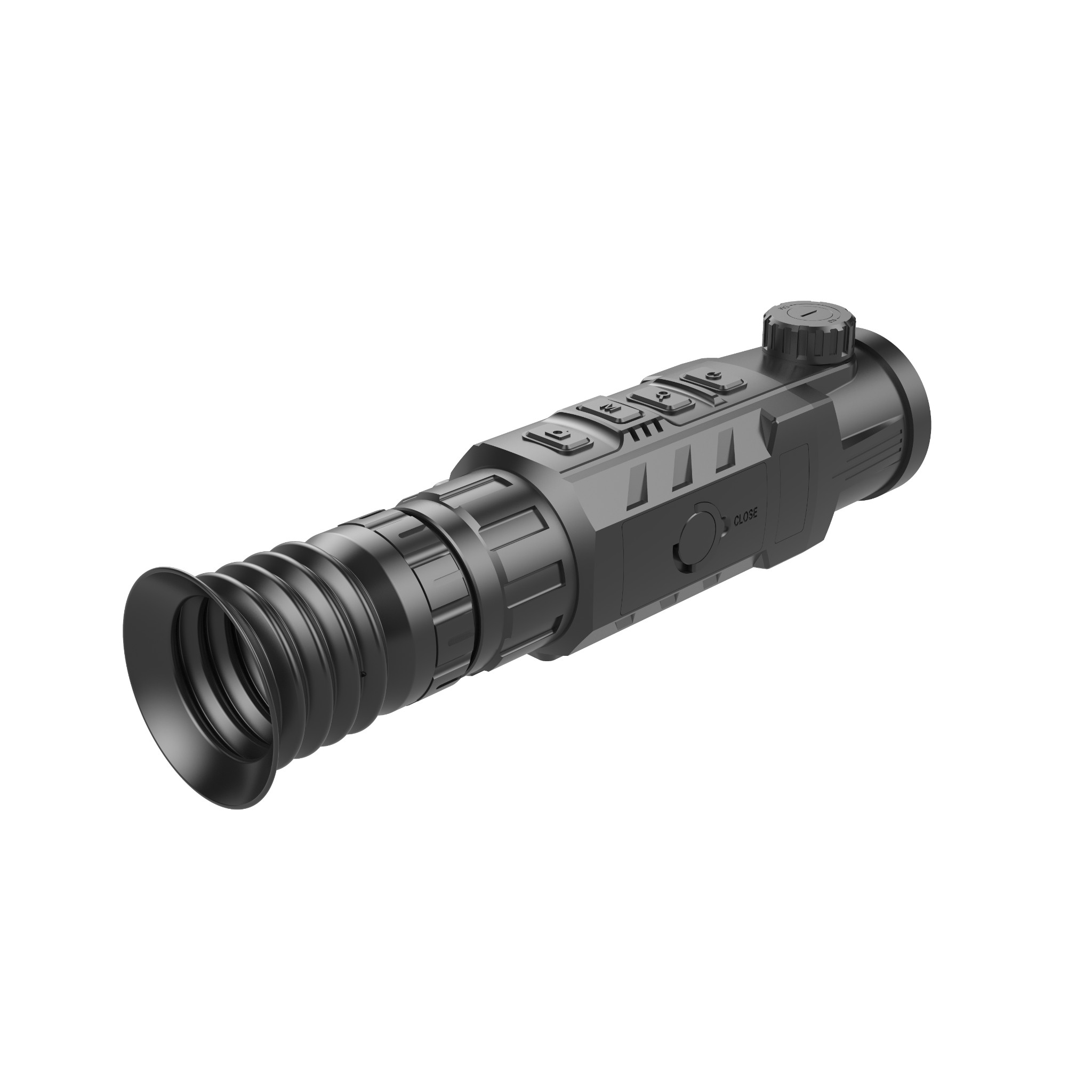

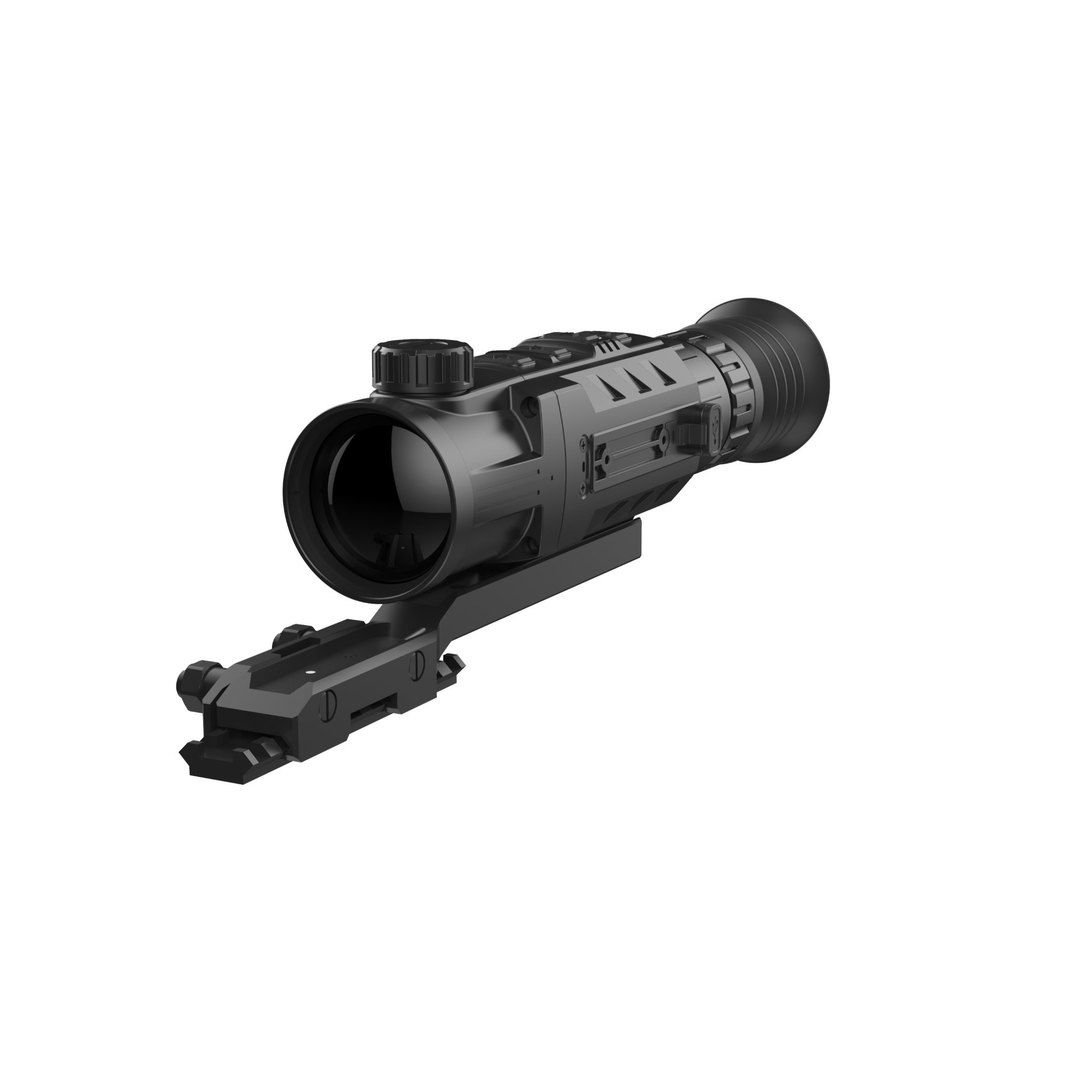

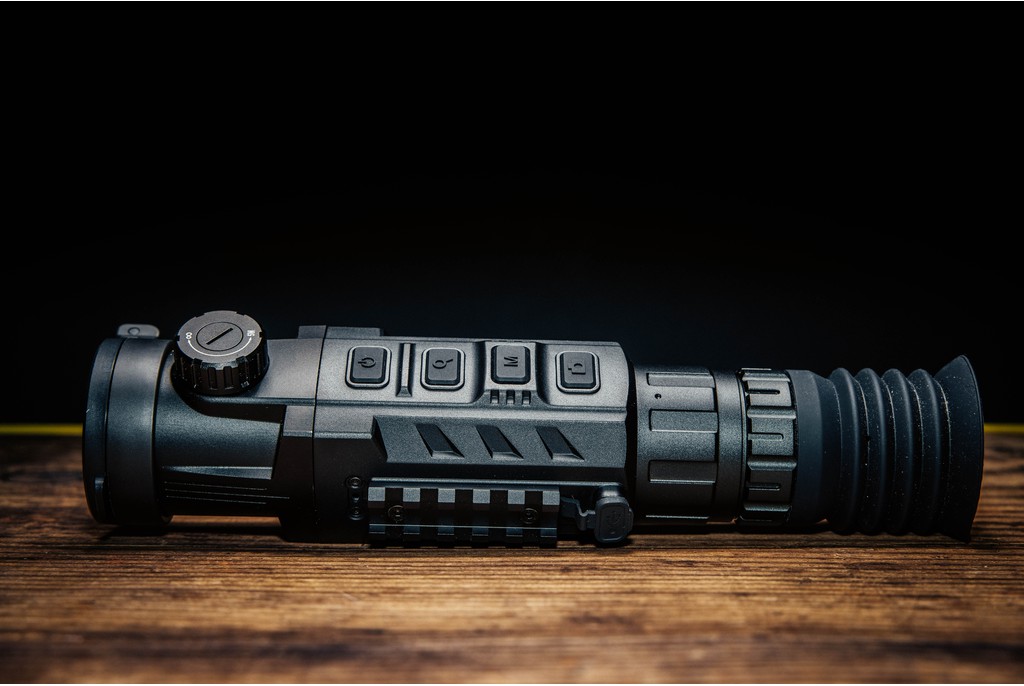

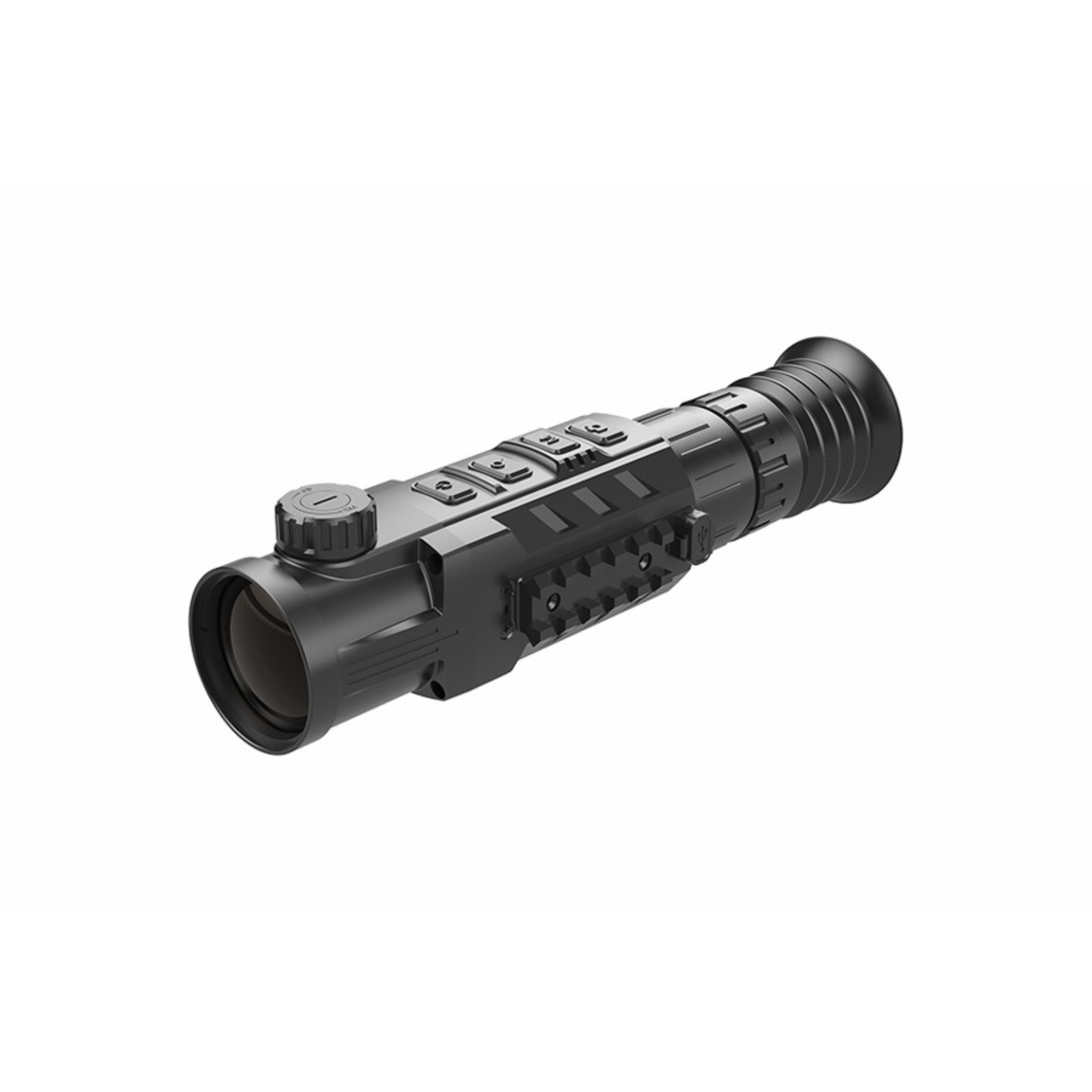

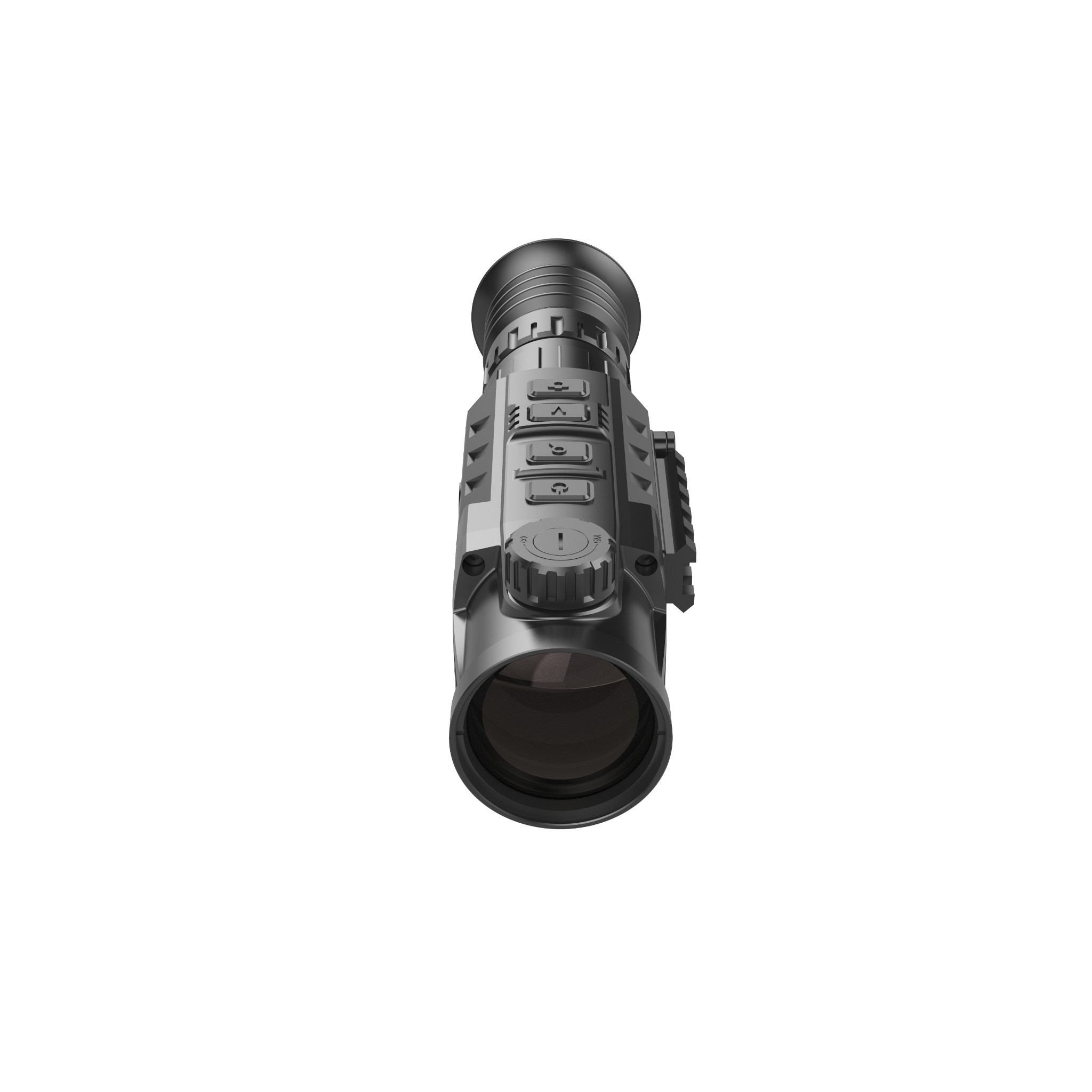

Iray RL42 Rico Infiray Thermal Rifle Scope



Model: RL42
Resolution: 384×288
Pixel Size: 12μm
NETD: ≤50mk
Frame Refresh Rate: 50Hz
Eye Relief: 55mm
Exit Pupil Diameter: 6mm
Magnification: x 4-16
Objective Lens: F42 / 1.1
Display Resolution: 1024×768 AMOLED
Display Size, inch: 0.39 inch
Laser Rangefinder: Optional
Battery: 3.7V / 4400mAh
Max. Battery Life,(t=25): 6 hours
Degree of protection IP code: IP67
Built-in memory: 32gb
Weight, (without battery): 830 g
Dimension: 250x65x58 (mm)
Detection Range: 2179 m

3 in stock

SKU: IRAYRL42 Category:


Iray RL42 Rico Infiray Thermal Rifle Scope description:


Meet the Iray RL42 RICO Series

To begin with the Iray RL42 Rico series is above all a multifunctional and highly expandable infrared thermal imaging product.  The product is featured with alterable laser rangefinder, detachable battery pack,  eyepiece magnification up to 16 times and also comprehensive upgrade of software interface. With the updated, the Rico series also offers advanced image correction and automatic  image optimization.

High Image Quality

The Iray Rico series is embedded with an infrared,  independently developed high performance VOx  detector, which for instance offers you vivid, highly detailed  thermal images. It is easier to search for targets in  the dark with amazingly sharp image quality.

AMOLED Micro Display

The high contrast AMOLED micro display with  HD resolution offers sharp image and vivid  colors. The display screen has excellent image  quality and gives a flawless performance, even  in freezing temperature.

Ultraclear Mode

The built-in ultraclear mode is especially designed  for harsh weather conditions, such as in heavy fog  and rain. Similarly It will be more sensitive and display more  details.

User-Friendly Interface

Simple and easy to operate is the initial design intention of the Rico series. The vivid icon design offers a  visualized guide and translucent background of the  menu display, as a result this ensures the user to observe the target unobstructed.


The Picture-in-Picture function improves accuracy by providing a 2 x-magnified image of the reticle area at the top of the display for instance. It helps to magnify the target while maintaining visibility of the entire field of view.

High Shock Resistance

The Iray RL42 Rico Infiray Thermal Rifle Scope features exceptionally high shock resistance up to 1000 G.

12 µm Thermal Imaging Sensor

High performance 12 μm pixel pitch detectors are therefore embedded.

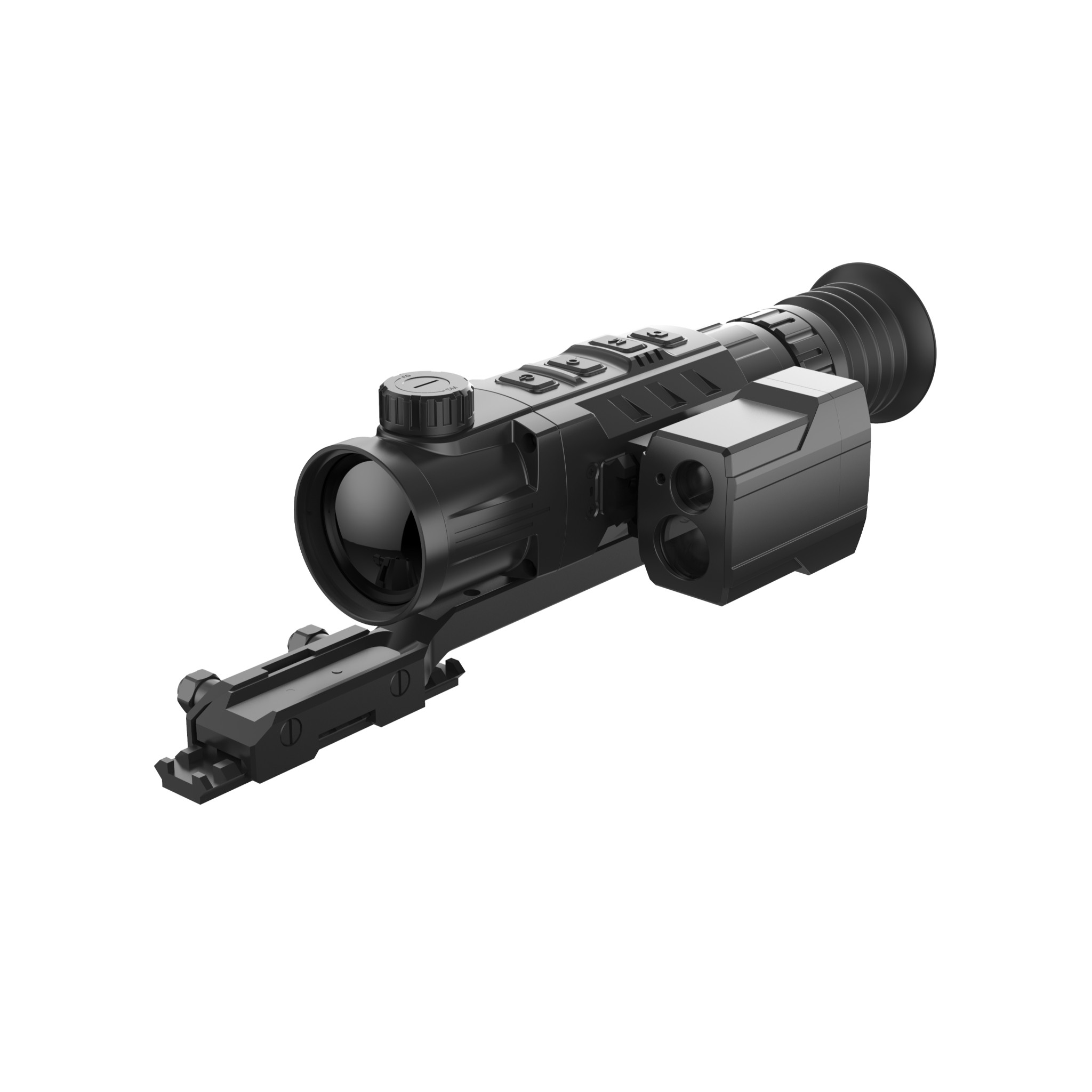

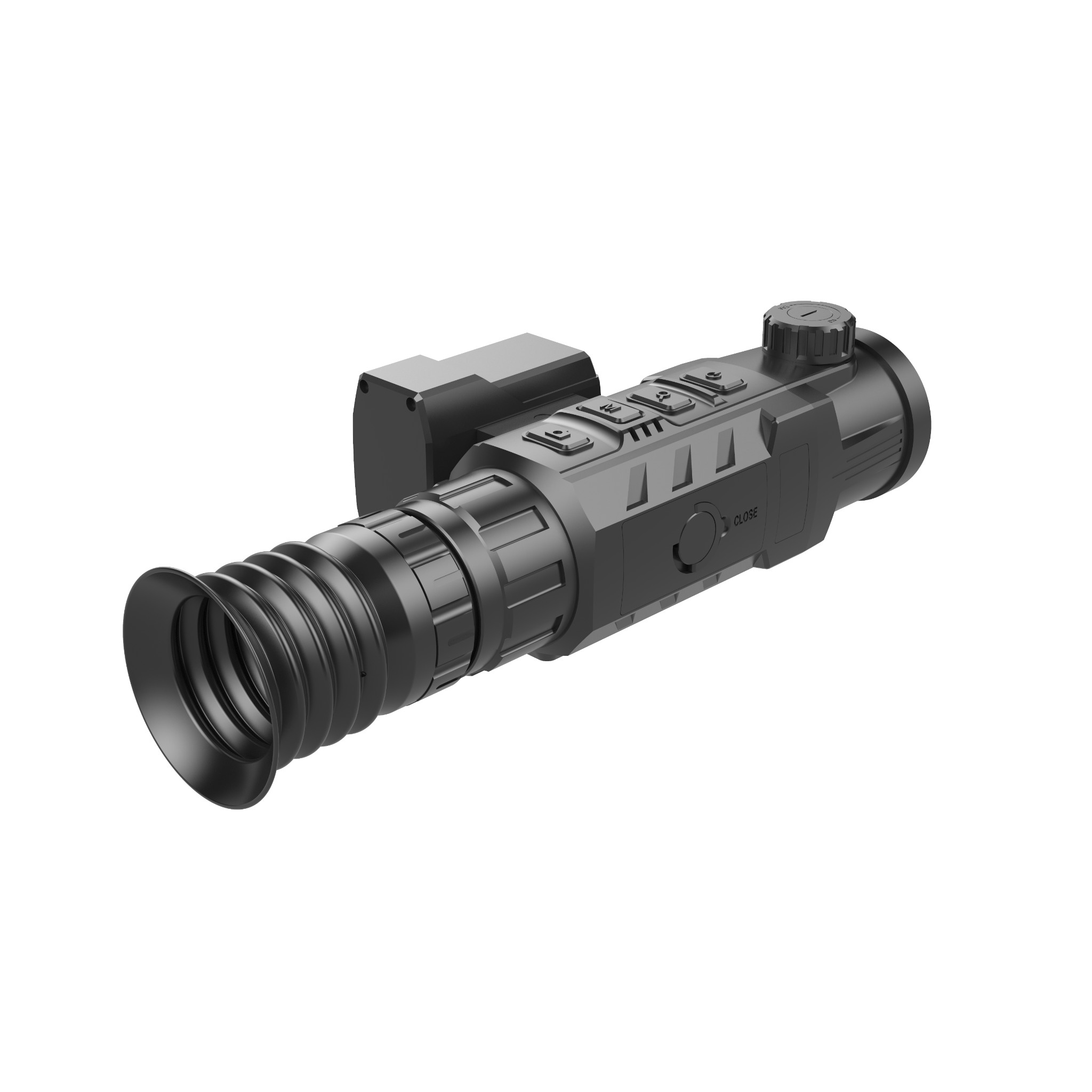

Expandable Laser Ranging Function

The Rico series offers laser ranging capabilities,  which can accurately capture and display the target  distance with an accuracy of ± 1 m and a maximum  distance of 1000 m. Integrated, precision laser rangefinder provides accurate range finding in two modes. Single Time Measurement and Scanning mode with ±1 m accuracy up to 1 km distance. Scanning mode allows the shooter to adjust quickly to changing distances for better shot placement.

Long detection range up to 2600 m

Powerful objective lens in combination with professional grade thermal imaging sensor with NETD ≤50 mK provides exceptional detection capabilities. A standard 1.8m tall object can be detected at a 2600 m distance in complete darkness.

Replaceable Battery Pack

The Iray RL42 Rico series support a 3.7 V, 4400 mAh large capacity battery pack that operates for 6 hours. With  the ability to maintain continuous power supply at  any time outdoors, it provides an ideal battery  solution. The batteries can be quickly removed and  replaced with new ones in a matter of seconds.

Video Recording

The Rico series offer video record as well as image capture during  observation. The video and photo can be easily transmitted  via wired in addition to WiFi connection. The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 32 Gb of internal memory provide many hours of recorded video and tons of photos.

Built-in Accelerometer and Digital Compass

The built-in accelerometer as well as digital compass improves accuracy by precisely identifying cant and angles. In conclusion it can indicate the direction and degree of lateral tilting.

Apple & Android App Link- CLICK HERE

User Manual- CLICK HERE

For more Iray Equipment CLICK HERE

Additional information

Weight 2184 g
